Highlights

  • Low power consumption

  • No phone line needed, just a power point

  • Frequency band: 1880MHz - 1900MHz Transmit power: 240mW (+24dBm)

  • Up to 6 repeaters per base station

  • 2 internal antennas

  • The common PCB mechanics measures only 82mm??47.5mm and is housed in a discrete plastic housing measuring only 120x130x35 mm

  • The DECT Repeater is compliant with:

    1. TBR6 TBR22 (Generic Access Profile, GAP)

    2. ETS 300 700 - ETSI Wireless Relay Station Specification


Description

In many cases, the Repeater can double the existing range of the DECT system for a minimal investment. The RTX 4002 DECT Repeater is intended for use in residential, business and public DECT applications based on the GAP profile, there are two internal antennas that can be used to extend the effective range of any standard DECT GAP base station. The repeater then automatically assigns itself the first available RPN number. If more repeaters have to be assigned to the same base station, the procedure just has to be repeated. The repeaters automatically keep track of the next available RPN number. A total of 6 repeaters can be assigned to each DECT GAP base station.

The 4002 Repeater can be deployed in either a Star or a Daisy Chain* configuration or a mixture of both up to 6 repeaters per base.

* Daisy chain deployment needs to be pre-programmed using a USB dongle.

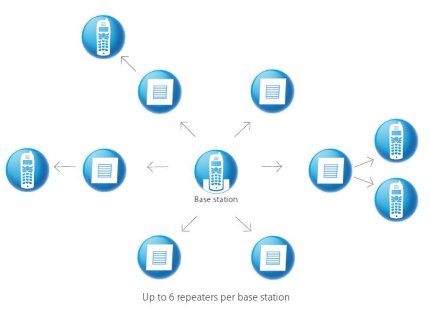

      Star GAP Repeater Layout
                                    STAR NETWORK DEPLOYMENT

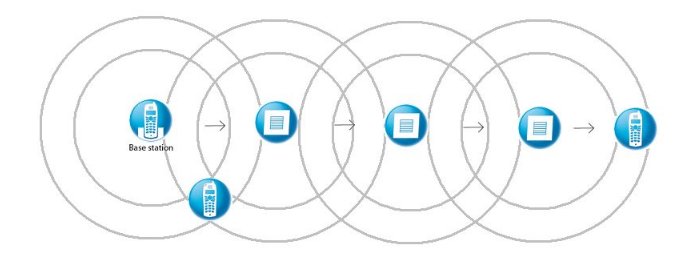

Series GAP Repeater layout
                       DAISY CHAIN NETWORK DEPLOYMENT

Please go to the downloads tab for installation information and the user guide
