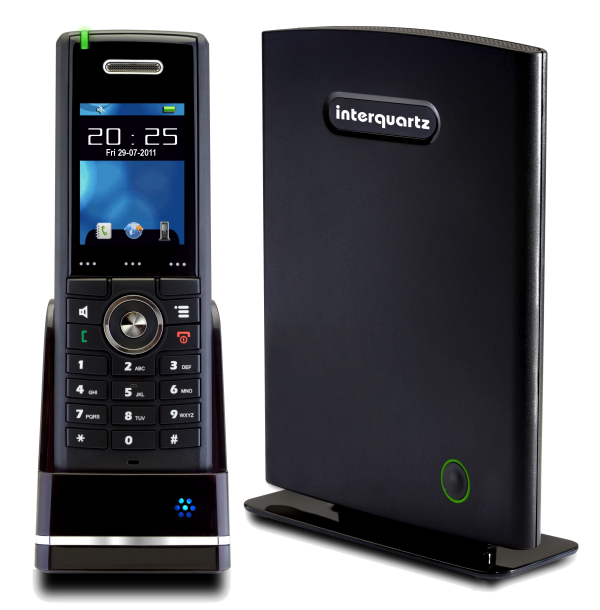

The IQ8000 series is a professional quality cordless phone sytem with infrastructure to support on-site multi-cell signal coverage with call handover.  Designed in Denmark, the IQ8600 works on standard SIP and Asterisk servers and runs on the client's ethernet network.  The IQ8600 offers a compact and easy to install scalable solution that can grow from a single base unit up to 240 networked base units (with up to 1,000 handsets in a fully configured environment) with seamless handover. This system utilises CAT-iq*, a global cordless technology and can be configured to support seamless wideband audio from the SIP environment to the cordless handset.

The system comprises POE bases with built-in repeaters and two handset models with modern styling. The maximum system size is 240 handsets ** with a multi-cell network of 40 bases**, so affordable coverage of large sites is limited only by ethernet availability as the wireless range is the same as that for standard DECT.

* CAT-iq stands for - Cordless Advanced Technology - Internet and Quality.  See www.cat-iq.org for more information.  CAT-iq was designed for IP voice services in next generation networks based on the regulatory framework of the DECT technology standard and focuses on high quality wideband VoIP and low bit-rate data applications.

 Please click the button to open a form in a new window to request a quotation.  We will be in touch shortly.

IQ8660 Base Features
  • Cordless DECT CAT-iq* technology
  • SIP compatible
  • Supports 10 handsets per base in single base mode
  • Supports 8 handsets per base in multi-base network
  • Wideband Audio HDSP G729 (optional)
  • Scalable system from 1-254 bases in Multicell mode
  • Up to 1,00 users (i.e 1,000 handsets registered)
  • Up to 30 roaming handsets can logon to one base
  • Over-the-air synchronisation
  • LED status indication on the base
  • Power over Ethernet (PoE)
  • Seamless mid-call handover for roaming in Multi cell mode
IQ8630 Handset Features
  • 2" TFT Colour LCD display
  • Graphical display with wallpapers
  • User friendly graphical interface
  • Headset Connector (3.5mm) - see below
  • Polyphonic ringtones
  • Phonebook: 200 central and 100 local entries
  • Wideband two-way speaker phone mode
  • SW upgrade over the air
  • Vibe Alert
  • Belt Clip
  • Leather Pouch with Belt Clip (optional, see below)
8630 Headset support: connect any Plantronics H Series headset (eg. HW251N) with the Plantronics 38541-02 cable.

The button on the 38541-02 cable supports call answer/hang up.

IQ8830 Handset Features

The IQ8830 is an IP65 handset, compatible with the IQ8000 system, which targets the industrial, hospital, hotel, secure and lonely worker verticals.
  • HD audio support (G.722)
  • 2" TFT display, 176x220
  • IP65 compliant, ruggedized design
  • Ambient noise reduction
  • Bluetooth for headset
  • HAC compliant (TIA-1083)
  • Vibrator
MESSAGING (ALL PRODUCTS)
  • Supports MobiCall messaging server for text and "man-down" functions (www.newvoice.com.au/mobicall)
  • SMS messaging, max length 200chars
  • Alarm generation from key, ManDown or Pull cord
  • Alarms list with colors
  • Storage: 35000 chars shared between SMS and Alarms
** Firmware version dependent.

 Please click the button to open a form in a new window to request a quotation.  We will be in touch shortly.

If you have issues accessing the quote form, please login and add items to the cart, then request an automated quote on the checkout.

IQ8660 Base Features

  • Cordless DECT CAT-iq* technology
  • SIP compatible
  • Supports 10 handsets per base in single base mode
  • Supports 8 handsets per base in multi-base network
  • Wideband Audio HDSP G729 (optional)
  • Scalable system from 1-254 bases in Multicell mode
  • Up to 1,00 users (i.e 1,000 handsets registered)
  • Up to 30 roaming handsets can logon to one base
  • Over-the-air synchronisation
  • LED status indication on the base
  • Power over Ethernet (PoE)
  • Seamless mid-call handover for roaming in Multi cell mode
  • Security - Supports Device, Server and Root directory security certifcates (Firmware 511.3)
  • HTTPS secure web interface (Firmware 511.3)
  • uaCSTA - integrate Windows Outlook and applications with your handset
  • LDDP vender neutral link layer protocol support (Firmware 530.07)

IQ8630 Handset Features

  • 2" TFT Colour LCD display
  • Graphical display with wallpapers
  • User friendly graphical interface
  • Headset Connector (3.5mm) - see below
  • Polyphonic ringtones
  • Phonebook: 200 central and 100 local entries
  • Wideband two-way speaker phone mode
  • SW upgrade over the air
  • Vibe Alert
  • Belt Clip
  • Leather Pouch with Belt Clip (optional, see below)
8630 Headset support: connect any Plantronics H Series headset (eg. HW251N) with the Plantronics 38541-02 cable.

The button on the 38541-02 cable supports call answer/hang up.


IQ8830 Handset Features

The IQ8830 is an IP65 handset, compatible with the IQ8000 system, which targets the industrial, hospital, hotel, secure and lonely worker verticals.

  • HD audio support (G.722)
  • 2" TFT display, 176x220
  • IP65 compliant
  • Ruggedized design
  • Dedicated Alarm key on handset top
  • Pull cord support
  • Man-down support
  • Ambient noise reduction
  • Optional Bluetooth for headset
  • Optional LF (125kHz) receiver for positioning
  • Micro SD-card support for fast handset exchange
  • Single SKU for WorldWide deployment
AUDIO
  • G722 codec for HD audio
  • G726 codec for narrow band audio
  • HD audio speakerphone
  • HAC compliant (TIA-1083)
  • Ambient noise reduction
  • Loudspeaker volume: >=100dBspl
  • Speakers insensitive to metal swarf
DISPLAY
  • 2’’ 176 x 220 pixels 64k TFT display
  • 3 colour MWI LED
  • Min. 20 languages supported
  • KEYPAD
  • 28 keys total including 5-way navi-key
  • 3 soft keys, 3 side keys
  • 1 alarm key on top
  • ON- and OFF-hook keys
  • IMD technology, with backlight
  • HEADSET OPTIONS
  • 3.5mm wired headset, Iphone compliant
  • Optional Bluetooth
RINGER
  • 20 polyphonic melodies, 6 levels
  • Volume control, Silent ringer
  • Alerting volume, adjustable (low battery, low coverage)
  • Vibrator
DECT
  • Frequency bands:
    - 1880 - 1900MHz (EU)
    - 1910 – 1930MHz (LATAM)
    - 1910 – 1920MHz (Brazil)
    - 1920 – 1930MHz (US)
  • Range:
    - Indoor: 50m
    - Out-door: 300m
  • Power levels: 4
  • Two antennas, fast diversity
  • Encryption supported
  • 10 system registrations
CALL FEATURES
  • Call list with 50 entries (All, received, outgoing, missed)
  • Speed dial
  • Central phonebook support (multiple LDAP server)
  • Local phonebook with 250 entries (3 numbers/name)
  • Date and time in Idle display
  • DND and CFx enable/disable from handset
  • Call waiting indication
  • Conference call, Call Swap support
MESSAGING
  • Supports MobiCall messaging server for text and "man-down" functions (www.newvoice.com.au/mobicall)
  • SMS messaging, max length 200chars
  • Alarm generation from key, ManDown or Pull cord
  • Alarms list with colors
  • Storage: 35000 chars shared between SMS and Alarms

POWER PERFORMANCE

  • Talk time: 17h(NB), 12h(WB)
  • Standby time: 200 hours
  • Battery type: Lith Ion
  • Cradle charging time: 6 hours

ENVIRONMENTAL CONDITIONS
  • IP65 compliant
  • Shock resistant
  • Enhanced ESD: 8kV contact and16kV air
  • Operating conditions: -15 - 55 degrees
  •  RELIABILITY SPEC
  • Drop height: 2m on concrete floor
  • Tumble test: 1000 x 0.5m
  • Keypad lifetime: 100.000 presses
  • Keypad abrasion: 70 RCA cycles

* CAT-iq stands for “Cordless Advanced Technology - Internet and Quality”.  See www.cat-iq.org for more information.  CAT-iq was designed for IP voice services in next generation networks based on the regulatory framework of the DECT technology standard and focuses on high quality wideband VoIP and low bit-rate data applications.

** Firmware version dependent.
